LED

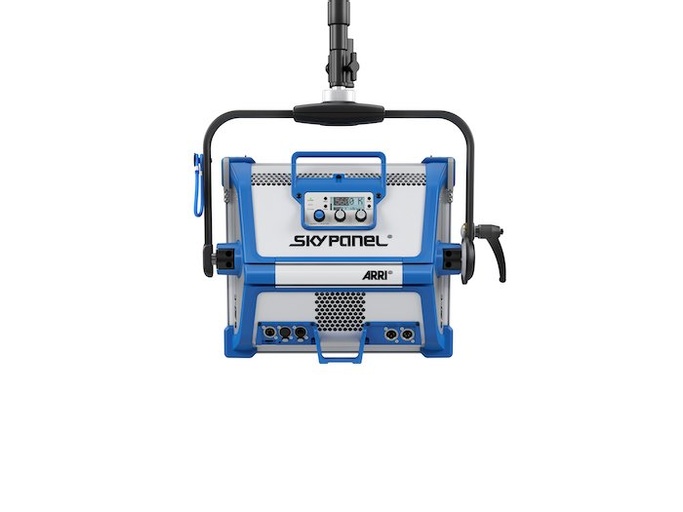

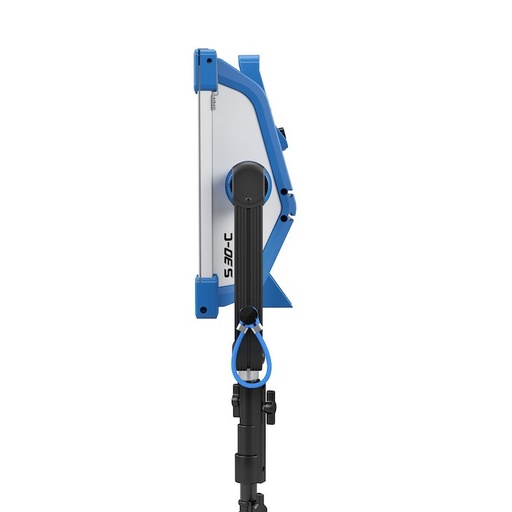

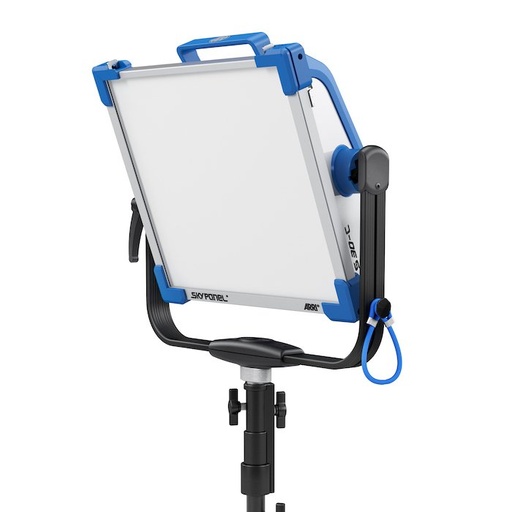

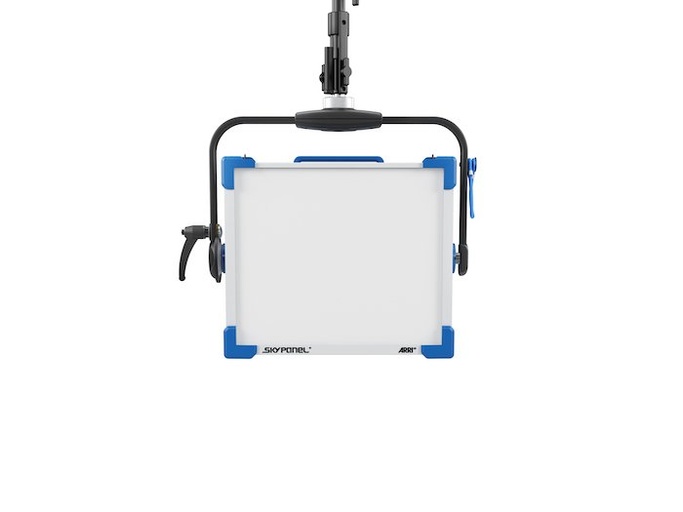

SKYPANEL S30-C
Available Now
The ARRI SkyPanel S30-C is a medium sized softlight LED panel. This fixture draws 5.5A at 120V and can be fully powered through AC, as well as 23V – 36V DC batteries with 4-pin XLR connector plate. Th
$300
1 Day
$900
1 Week
Save 57%
$2700
4 Weeks
Save 68%
Multi-day discounts applied automatically. Custom rates available for productions over 4 weeks.
Specifications
| Mounting | 750 spigot (aka 5/8″ or baby pin) |
| Power Consumption | 200w nominal, 220w maximum |
| Battery run time | 1 hour @ Full power, 5600k when using Dynacore 26V 230Wh |
| Battery voltage range | 23 – 36 V DC |
| Power draw | 2.8Amps @ 120V |
| >95 CRI, >91 TLCI rating | |
| Light Aperture | 14 x 11.8″ / 35.5 x 30cm |
| Beam angle | 115° |
| At 16.4′ / 5 m and 5600K With Standard Diffusion | 222 lux/ 21 fc |
| IP20 | |
| Dimensions | 20.0 x 22.0 x 5.2″ / 50.7 x 55.9 x 13.3 cm |
| Weight | 17.2lbs / 7.8kg |
What's Included in Your Rental
ARRI SkyPanel S30-CPower Supply w/ power cableFixture cable to power supplyRail mount for Power SupplyHard rolling case
About This Equipment
The ARRI SkyPanel S30-C is a medium sized softlight LED panel. This fixture draws 5.5A at 120V and can be fully powered through AC, as well as 23V – 36V DC batteries with 4-pin XLR connector plate. The ARRI SkyPanel S30-C maximum output is brighter than a 1000w tungsten soft or a 3000w tungsten space light. This light can be controlled with the control panel at the back of the fixture or with the ARRI SkyPanel remote control. The panel’s colour gamut ranges from 2800K to 10000K, with green and magenta corrections, as well as RGB+W.
