M18 - 1200w HMI
Available Now

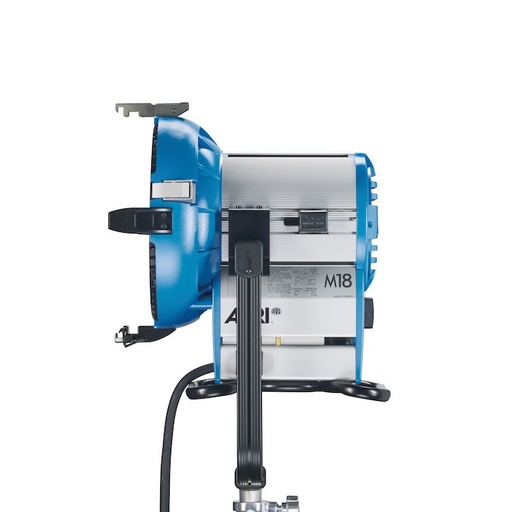

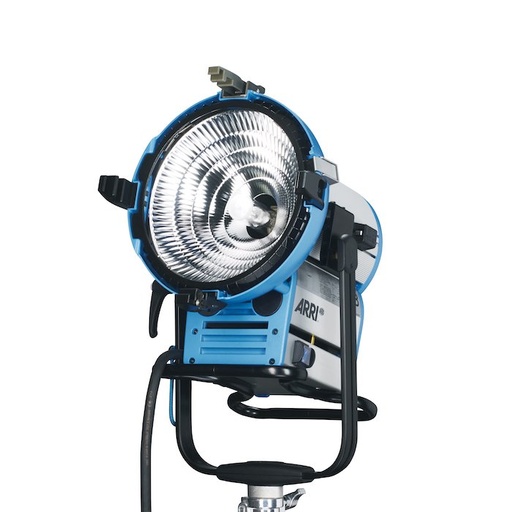

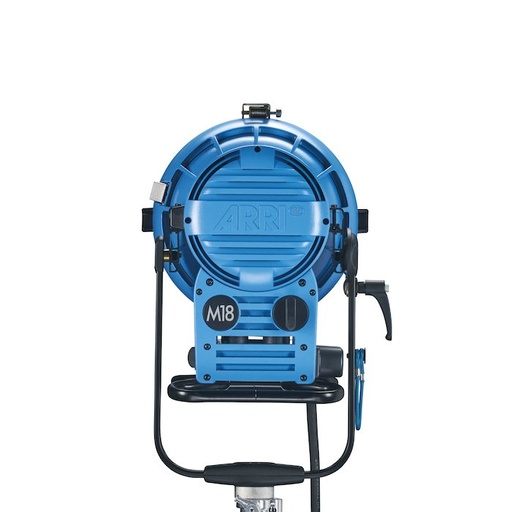

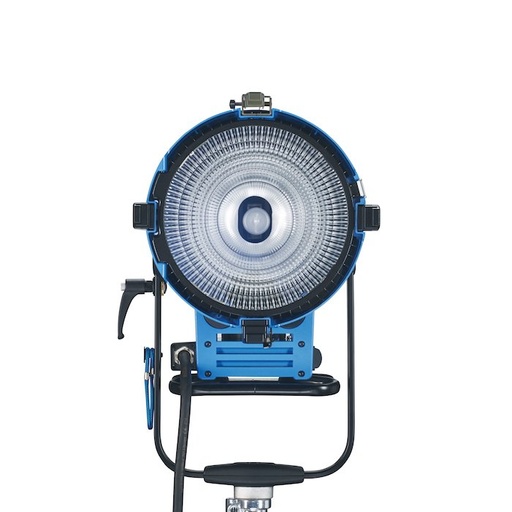

The ARRI M18 1200W HMI is an open-face HMI fixture. You can power this light with a single 20 amps circuit and it can be used with the Honda EU7000is generator. With the appropriate speed ring, this l
$403
1 Day
$1209
1 Week
Save 57%
$3627
4 Weeks
Save 68%
Multi-day discounts applied automatically. Custom rates available for productions over 4 weeks.
Specifications
| Mounting | 2k Plug (a.k.a 1 1/8″ or Junior Plug ) |
| CRI90+ @ 6000k | |
| Output Frequency option | 100Hz, 300Hz, 1000Hz, Silent mode |
| Power draws | 8.7A@230V, 16.7A@120V |
| Dimensions | 17.5 x 15.25 x 12.2″ (69.85 x 38.73 x x38.73 cm) |
| Weight | 23.1 lbs (10.5 kg) |
| IP21 | |
| Specified Operating Conditions | |
| Do not aim the light straight down. | |
| Do not let hot lens, bulb or glass cover wet under any circumstances. | |
| Hot re-strike time | 10 minutes. |
| Let light warm up for 5-10 minutes for optimal output and proper colour temperature. | |
| Compatibility | |
| Chimera HT Octaplus 5' (3200w max) for Arri M18 | |
| Chimera Quartz Plus (6000w max) Medium Bank Silver Softbox 36"x48" | |
Key Features

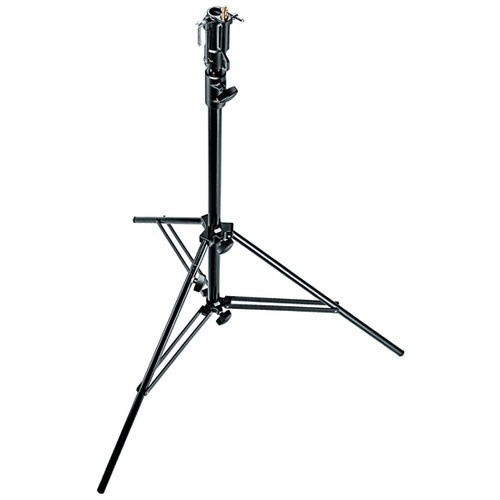

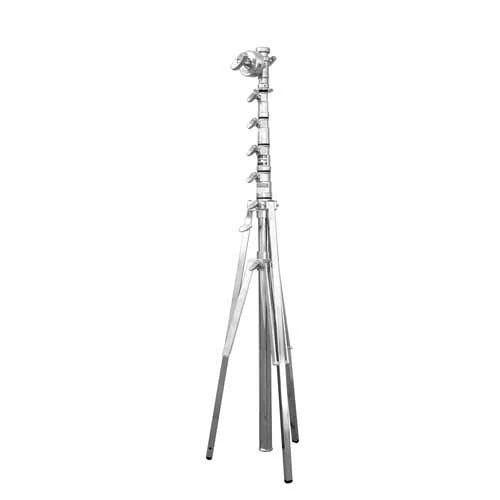

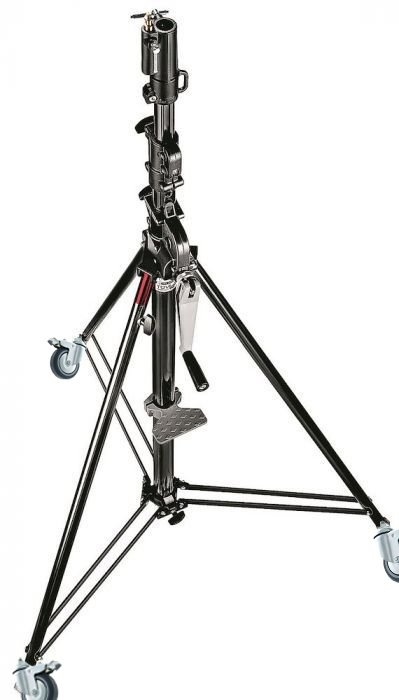

- Stand with 1 1/8″ (2k, Junior) female receiver.
What's Included in Your Rental

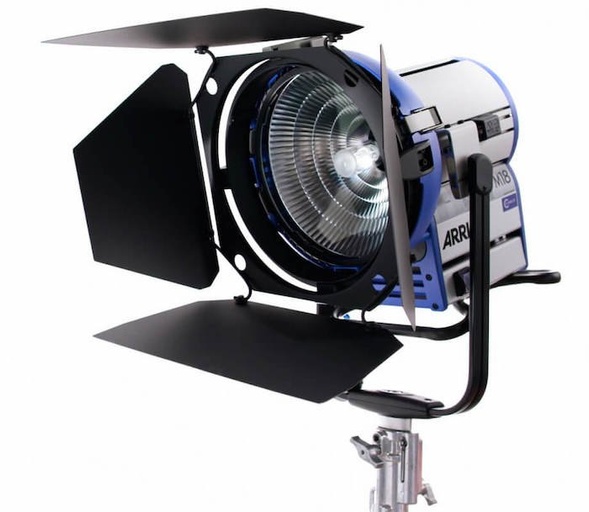

1 x M18 Fixture with 1200w bulb1 x Power Gems Ballast2 x 13″ Double Scrim (Full)1 x 13″ Single Scrim (Full)1 x Barn Doors1 x Spill Ring1 x Frosted Glass Diffuser2 x 50′ Header Cable1 x Spare Bulb per order
About This Equipment

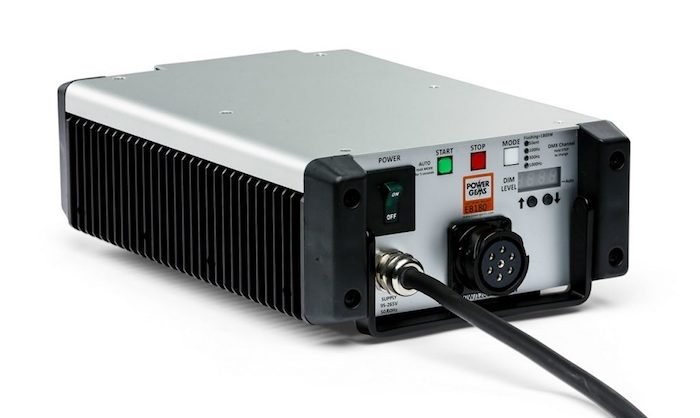

The ARRI M18 1200W HMI is an open-face HMI fixture. You can power this light with a single 20 amps circuit and it can be used with the Honda EU7000is generator. With the appropriate speed ring, this light can be used with Chimera’s Quartz series to achieve a softer light. This light has dimming and focusing ability. The included High Speed Power Gems EM180P Ballast, allows you to shoot up to 3000 frames/sec. This 1200W light comes in the same housing as the ARRI M18 1800W. | Requires:
